38.2"*11.8"*13.4" 110V Precision Metal Lathe 110V 1100W Brushless



•




•




•




•




•




•




•





38.2"*11.8"*13.4" 110V Precision Metal Lathe 110V 1100W Brushless Motor WM210V  HayWHNKN® Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread. Motor: 110V brushless motor Voltage: AC110V 50/60Hz Power: 1100W Length of center: 23.6"(600mm) Swing Over Bed: 8.3"(210mm) Rotary diameter of tool rest: 5.51"(140mm) Spindle bore: 1.50"(38mm) Diameter of chuck: 4.92"(125mm) Width of lathe bed: 3.94"(100mm) Number of Spindle Speeds: Infinitely variable speeds Spindle taper: MT5 Knife rest labour: Horizontal four-station Spindle rotation speed: 50-2500rpm Range of Inch Threads(optional accessory ): 10-44T.P.I Precision of the spindle: 0.01mm Automatic feed range: 0.1mm-0.2mm Maximum stroke of tool rest plate: 2.16"(55mm) Maximum stroke of middle plate: 2.95"(75mm) Maximum stroke of bottom plate: 19.7"(500mm) Maximum stroke of tailstock sleeve: 2.36"(60mm) Tail frame taper: MT2 Lathe sizes: 38.2"*11.8"*13.4"(97*30*34cm) Package size: 43.7"*19.3"*17.7"(111*49*45cm) Gross weight: 165lb(75kg)

Note:*We provide optional parts for this lathe. If you need, please contact us*.

1.High quality cast iron bed after high frequency quenching process and precision grinding
2.The spindle rotation speed is divided into two levels in the range of 50-2500rpm, which can be adjusted continuously
3.Brushless motor has strong power, low noise and saves energy consumption
4.High precision spindle, high quality bearing, high accuracy, wear resistance, long life
5.With one button start and stop switch and forward and reverse switch

Digital Display Speed
Digital display of rotation speed ,more accurate adjustment, moreconvenient operation

Three Jaw Chuck
High-precision three-jaw chuckswith 125mm clamping diameterare used to clamp square andround materials firmly

Metal Size Combination
Equipped with metal gear, machinehas strong power, wear-resistingand more accurate transmission Stepless Variable Speed Switch
Spindle speed is divided into highand low two gears: 50-1250rpm/mand 1250-2500rpm/m 4-way Tool Post
The adjustable 4-way tool poston the lathe allows you to easilychange your cutting tools. Precision Scale Design
Precise dials are provided onthe saddle handle,the tailstockhandle and the movable center,allowing for more accurate andprofessional work. Safety Switch
Forward and reverse switch
and with emergency stop switchIn case of emergency can stopimmediately, more safe Accurate Tailstock
With the MT#2 taper in tailstockspindle, this lathe machine iscapable of adjusting set screwsfor accurate operation. Extra-large Spindle Bore
Large spindle bore with diameter of38mm can insert material from theaperture of the machine head, makingit more convenient to process longermaterials Wide Application

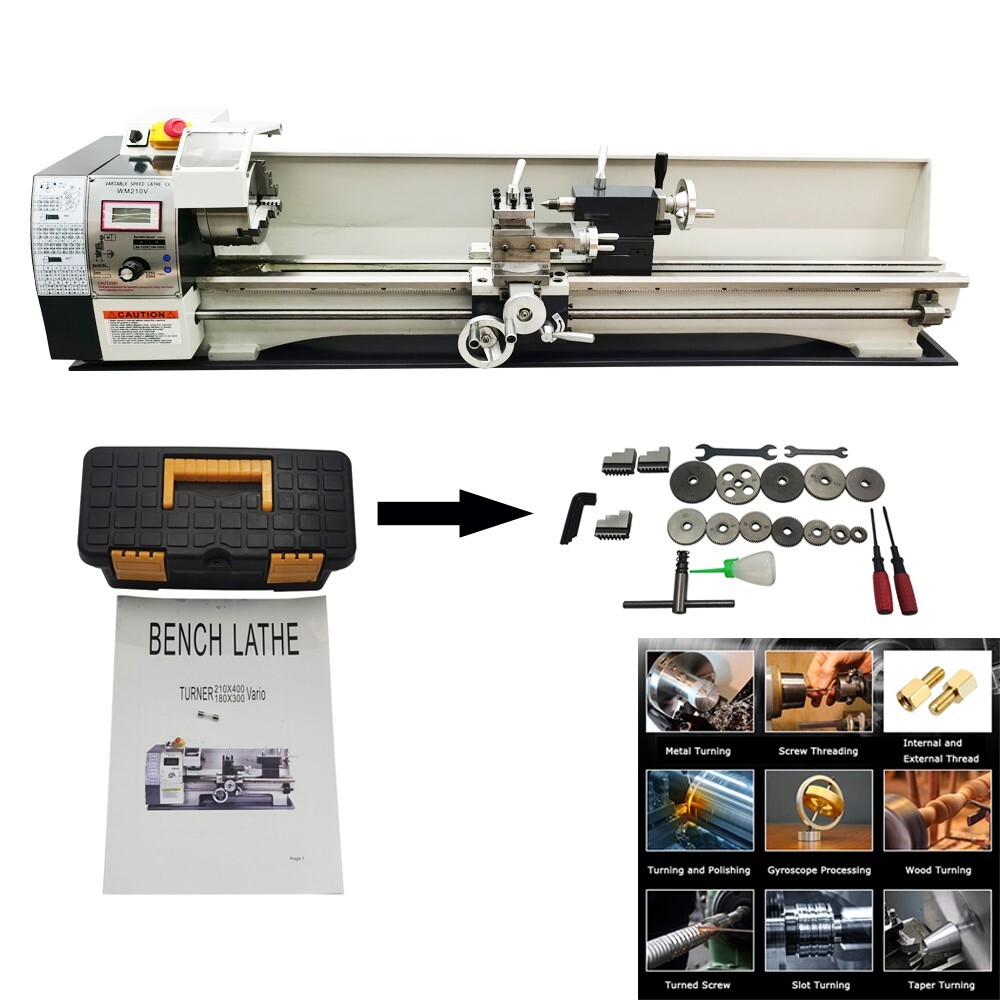

This mini metal lathe is suitable formany processing tasks includingturning, drilling, threa ding andcutting and so on Item Included（0280331） WM210V lathe * 1 Chuck Jaw * 3 The Screwdriver * 2 Open spanner *2 Hexagon Wrench *5 Chuck Spanner *1 Oil can * 1 Oil pan * 1 Gear *11 (75/72/70/66/60/60/52/50/48/40/30) The Fuse * 1 English Instruction Manual *1
